45T Double Drum Waterfall Marine Winch: The Ultimate Solution for Offshore Operations

Experience

30+ Years Rich Experience

Digital Solutions

R&D Team standing by

24/7 Support

We are here for you

The 45T double drum waterfall marine winch is a powerhouse in the maritime industry, engineered specifically for demanding tasks such as towing, mooring, and anchor handling. Its unique “waterfall” (vertical staggered) design allows for high rope capacity and multi-functional capability while maintaining a compact footprint on the vessel deck.

At CP Winch, we provide heavy-duty winching solutions that comply with international maritime standards, ensuring safety and reliability in the harshest sea conditions.

Why Choose a Waterfall Configuration?

The “waterfall” arrangement places one drum above and slightly behind the other. This setup offers several advantages:

  • Space Efficiency: Maximizes deck space by utilizing vertical height.

  • Optimized Spooling: Improved fleet angles for both drums, reducing rope wear.

  • Versatility: Allows for simultaneous or independent operation of towing and anchor handling lines.

Key Features of our 45-Ton Marine Winch

1. Robust Drive Systems

Our 45T winches are available in both Electric and Hydraulic drive configurations. The hydraulic variant is particularly favored for offshore operations due to its stepless speed control and high torque density.



2. Advanced Control & Safety

Equipped with emergency release systems, length/tension monitoring, and fail-safe braking mechanisms to protect your crew and equipment.



3. Corrosion Resistance

Built with marine-grade steel and finished with high-durability epoxy coatings to withstand saltwater environments and prevent oxidation.

Technical Specifications (Standard 45T Model)

Parameter Specification
Rated Pull (1st Layer) 450 kN (45 Tons)
Bending Load (Static) 1200 kN
Drum Configuration Double Drum (Waterfall Type)
Rope Capacity 500m – 1200m (Customizable)
Rope Diameter 38mm – 52mm
Working Speed 0-15 m/min (Variable)
Drive Power Hydraulic / Electric
Certification CCS, BV, ABS, DNV-GL

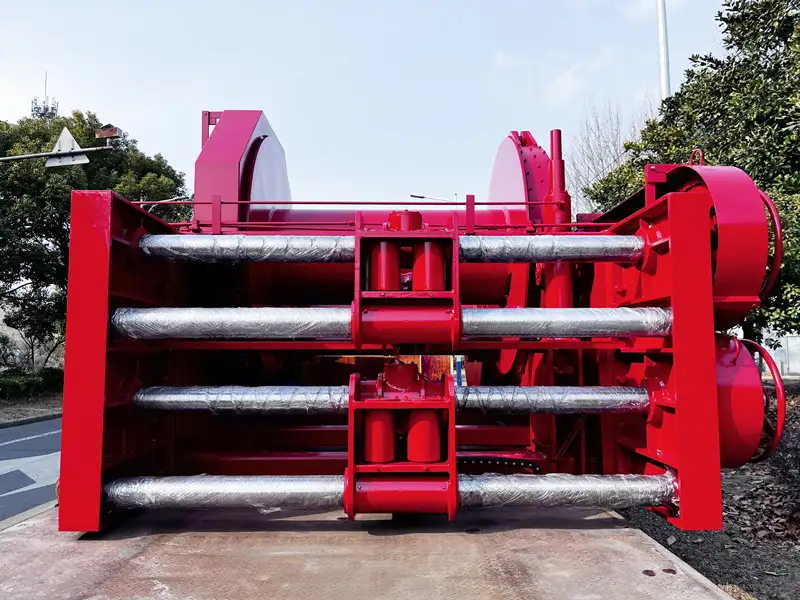

45T double drum waterfall marine winch with spooling device
45T double drum waterfall winch

Types of Marine Winches

Anchor Winch

Used for raising and lowering the ship’s anchor

Mooring Winch

Keeps the vessel securely in position at the dock or harbor

Towing Winch

Handles towing operations between ships or offshore platforms

Cargo Handling Winch

Helps in loading and unloading cargo on ships.

Advantages of Using Marine Winches Made by CPWINCH Group

  • ✔️ Essential for safe ship operations

  • ✔️ Built to resist seawater corrosion

  • ✔️ Available in multiple power options (electric, diesel, hydraulic)

  • ✔️ Handles a wide range of marine tasks

  • ✔️ Customizable to fit different vessel sizes and project needs

marine winch machines

How to Select the Right Marine Winch

1. Define the Application

Choose anchor, mooring, towing, or cargo winches based on ship operations.

2. Power Source Selection

Electric for energy efficiency, hydraulic for continuous heavy duty, diesel for offshore areas without electricity.

3. Material Durability

Ensure the winch is made with marine-grade, corrosion-resistant materials.

4. Safety Systems

Look for overload protection, brakes, and emergency stop functions.

5. Customization

Select manufacturers like CPWINCH that can tailor winches to specific vessel or project requirements

Applications in the Marine Industry

The 45T waterfall winch is a versatile asset for various vessel types:

  • AHTS Vessels: For anchor handling and towing maneuvers.

  • Barges & Workboats: Providing heavy-duty mooring and positioning.

  • Salvage Operations: Offering the high-tension pull required for recovery tasks.

General Winches

Standard electric winches, hydraulic winches, diesel winches, and manual winches for lifting, towing, and other operations in industrial production and cable laying.etc

Mining Winches

Sinking winches,Scraper winches.etc for mining fields.For some special occasions,explosion-proof feature has to be taken into consideration.

Construction Winches

Piling machines—piling winches are used for piling and rigging.Gate hoists:widely used for spillways and dams,also called a sluice winch.

Marine Winches

Anchor winches,mooring winches,windlasses,capstans.etc are used for anchoring and mooring operations for large boats and ships.

Winch Kits

We supply winch related kits such as drum braks,speed reducers,spooling devices,winch motors,wire rops,anchors,chains,airbags.etc

Contact CP Machinery

We’re located in Xinxiang,Henan Province,China,a place known as the hometown of lifting equipment. Email:info@cpmachinery.com.

FAQs About Marine Winches

Q1: What is the benefit of a 45T waterfall winch over a linear double drum winch?

The waterfall design is significantly more compact, making it ideal for vessels with limited deck space. It also provides better line sight and fleet angles for the upper drum compared to side-by-side configurations.

Q2: Can the winch be customized for specific rope types?

Yes. We can customize drum dimensions to accommodate steel wire rope, synthetic fiber rope, or specialized umbilical cables depending on your operational needs.

Q3: What maintenance is required for a hydraulic 45T marine winch?

Regular maintenance includes checking hydraulic fluid levels, inspecting seal integrity, lubricating the gearings, and testing the emergency brake systems. CP Winch provides a detailed maintenance manual with every unit.

Q4: Does the winch come with a warranty and certification?

Absolutely. All CP Winch products come with a standard 12-month warranty and can be delivered with major class certificates such as CCS, BV, or ABS.
