Electric Winch for Lifting: Choosing the Right Model for Your Needs
Experience
30+ Years Rich Experience
Digital Solutions
R&D Team standing by
24/7 Support
We are here for you
An electric winch for lifting is a powerful mechanical device that uses electricity to drive a motor, which in turn operates a winch drum to lift or pull heavy loads. These winches are commonly used in industries such as construction, automotive, and marine, as well as for recreational purposes like off-roading or boating.
Key Features of Electric Winches:
-
Motor Power:
-
Electric winches are powered by a motor, usually between 12V to 48V DC or even AC in some cases.
-
The motor power dictates how heavy a load the winch can lift. Higher wattage equals higher lifting capacity.
-
-
Lifting Capacity:
-
Winches come in various capacities, ranging from small units that lift up to 1,000 lbs (450 kg) to industrial-grade winches capable of lifting several tons.
-
Always select a winch that can handle more than the maximum load you’ll be lifting for added safety.
-
-
Drum Material & Size:
-
Winches feature a drum (where the rope or cable is wound), which may be made from steel or synthetic materials.
-
The size of the drum impacts how much rope or cable it can store and the amount of space needed for the winch setup.
-
-
Cable or Rope:
-
Electric winches can use either steel cables or synthetic ropes.
-
Steel cables are durable and resistant to abrasion but can be heavy and prone to rust.
-
Synthetic ropes are lightweight, easy to handle, and resistant to wear but need more care to avoid cuts.
-
-
-
Control Mechanisms:
-
Electric winches can be controlled using:
-
Wireless remote control for convenient operation from a distance.
-
Wired remotes that offer direct control but require the operator to be near the winch.
-
Manual controls on the winch itself, though this is less common with electric models.
-
-
-
Safety Features:
-
Overload Protection: To prevent the motor from burning out or the system from damaging under excessive load.
-
Brake Mechanism: A built-in brake holds the load in place when it’s not moving, preventing accidental dropping or shifting.
-
-
Gear Ratio:
-
Single-speed winches have a fixed speed, while two-speed winches allow you to adjust the speed for quicker or more controlled lifting.
-
Things to Consider When Choosing a Winch:
CP Winch Group offers a broad range of heavy-duty winch systems, each designed for specific industrial needs. Here are the types of winches we offer:
-

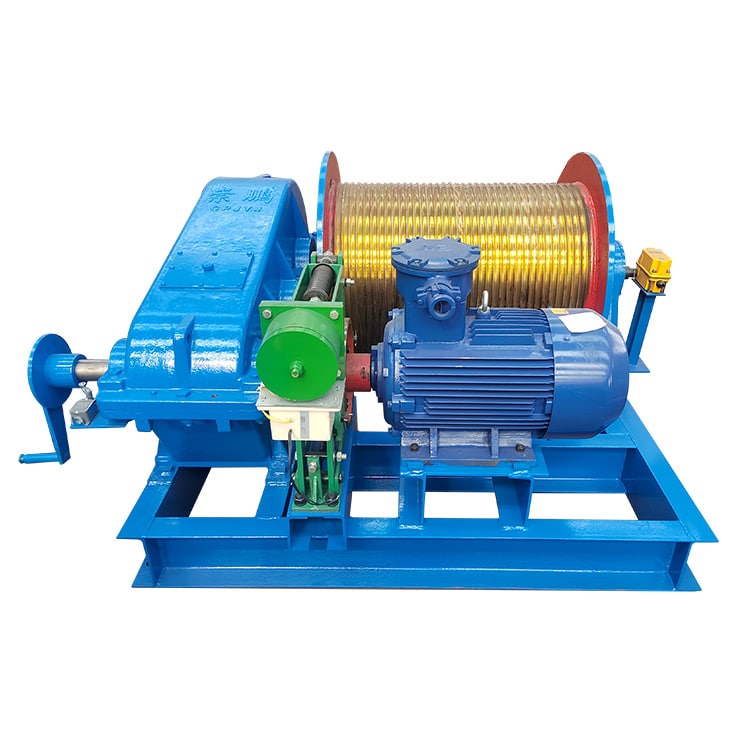

Electric Winches
Ideal for controlled and efficient lifting in construction, manufacturing, and more. Our electric winches provide precise control for both lifting and pulling operations. -
Hydraulic Winches
Known for their high power and durability, hydraulic winches are perfect for industries like offshore drilling, oil & gas, and mining. These winches are powerful and ideal for tough environments. -
Diesel Winches
Diesel-powered winches are a go-to solution for operations in remote areas with limited access to electrical power. They offer powerful lifting and pulling in even the harshest conditions. -
Mining Winches
Mining winches are specially designed to meet the rigorous requirements of mining operations. These winches are used for heavy lifting, hoisting, and moving equipment and materials safely. -
Marine Winches
Marine winches are essential for the safe handling of heavy loads on ships, boats, and offshore platforms. Designed for extreme weather conditions, these winches ensure reliable operations in marine environments.
Key Specifications of CP Winch Group’s Heavy-duty Winches
| Winch Type | Load Capacity | Lifting Speed | Power Source | Customization Options |
|---|---|---|---|---|
| Electric Winch | 1–200 tons | 5–50 m/min | Electric (AC/DC) | Variable speed, custom drum size |
| Hydraulic Winch | 5–300 tons | 10–50 m/min | Hydraulic | Wireless control, custom motor |
| Diesel Winch | 10–500 tons | 2–30 m/min | Diesel | Heavy-duty clutch, custom cable |
| Mining Winch | 5–150 tons | 1–30 m/min | Electric/Diesel | Safety lock, corrosion resistance |
Price Range: $2,000 to $100,000+, depending on customization and specifications.
Arrange your pulling jobs with winches from CPWINCH Group
OEM Supported,anything you need about winches,welcome to send a free inquiry.
Email:info@cpwinch.com
Why Choose CP Winch Group for Your Heavy Duty Winch Systems?
CP Winch Group provides industry-leading solutions for all your winching needs. Here’s why we are the preferred choice for heavy duty winch systems:
-
Custom Solutions: Our OEM production allows us to create custom winches to match your specific requirements and ensure maximum efficiency.
-
Expertise and Experience: With years of expertise, we provide winches designed for heavy-duty and high-capacity lifting and pulling.
-
Durability: Our winches are built with robust materials to withstand tough working conditions and last for years in demanding environments.
-
Comprehensive Support: We offer full technical support, from initial consultation to after-sales service, ensuring the long-term reliability of your equipment.
-
Power Source: Ensure the winch is compatible with your power source. If you’re using it in a remote area, you may need a 12V DC model to hook up to your vehicle’s battery.
-
Weight of Load: Always calculate the weight of the load you intend to lift and choose a winch that can handle a minimum of 1.5 times that weight for safety.
-
Mounting Location: The winch needs a secure place to be mounted, so check if you need additional mounting kits or frames.
-
Duty Cycle: This refers to how long the winch can operate before it needs to cool down. Continuous use can wear down the winch, so if you plan on frequent lifting, consider a winch with a higher-duty cycle.
Popular Applications:
-
Construction: For lifting heavy materials such as steel beams, concrete, or equipment.
-
Boating: For pulling boats onto trailers or lifting anchors.
-
Off-roading: For lifting or pulling vehicles out of mud or onto elevated platforms.
-
Automotive: For hoisting heavy parts or assisting in automotive repairs.
