Reliable Gate Hoist Systems for Hydropower and Water Management

Experience

30+ Years Rich Experience

Digital Solutions

R&D Team standing by

24/7 Support

We are here for you

In water conservancy projects such as dams, reservoirs, irrigation canals, and hydropower stations, the precise control of gates is essential. Gate hoist winches offer a safe and powerful solution for raising and lowering sluice gates, ensuring smooth water flow, flood prevention, and efficient power generation.

What Is a Gate Hoist Winch?

A gate hoist winch is a specialized lifting mechanism designed to control the vertical movement of heavy steel or concrete gates in water engineering applications. It typically includes:

  • A high-torque winch motor (electric or hydraulic)

  • A drum and wire rope assembly

  • Gear reducers and limit switches

  • A gate lifting beam or frame structure

Depending on the gate size and load, single-lift or twin-lift winches may be used.

Where Are Gate Hoist Winches Used?

1. Hydropower Stations

  • Regulating water intake and turbine flow

  • Controlling floodgates and emergency spillways

  • Synchronizing multiple gate systems for reservoir control

2. Irrigation and Water Diversion Projects

  • Lifting canal sluice gates

  • Opening and closing sediment flushing gates

  • Adjusting flow levels to agricultural zones

3. Dams and Reservoirs

  • Controlling crest gates and radial gates

  • Managing flood discharge gates

  • Ensuring structural safety during seasonal changes

4. Navigation Locks and River Barrages

  • Lifting ship lock gates

  • Controlling water levels between chambers

  • Preventing reverse flows or overflow

dam gate lifting system
winch for dock operations

Benefits of Using Winch-Based Gate Hoisting Systems

Feature Benefit
Precision Control Smooth lifting/lowering with adjustable speed
Heavy Load Capability Lifts gates weighing tens to hundreds of tons
Weather Resistance Designed for 24/7 outdoor operation
Remote Operation Supports PLC, manual, and wireless control
Fail-Safe Systems Includes overload protection, limiters, and brakes

Types of Gate Hoist Winch Configurations

  • Single Winch Drive – For gates with moderate span and load

  • Double Winch (Synchronous) – For large spillway or radial gates

  • Screw Gate Hoist (Electric/Manual) – Often used in small canals

  • Hydraulic Cylinder Hoist – For fast, high-pressure applications

  • Custom Gantry Hoist Frames – Mobile or stationary structures with integrated winch units

  • Whether you’re upgrading an aging dam or building a new water diversion system, CPWINCH can provide a turnkey hoisting solution.

CPWINCH Gate Hoist Solutions – Engineered for Demanding Water Projects

At CPWINCH, we specialize in customized winch-based gate hoist systems for various water infrastructure projects. Our advantages include:

  • Lifting capacities up to 300 tons

  • Corrosion-resistant coatings and sealed components

  • Integrated safety mechanisms (brakes, sensors, alarms)

  • Adaptation for harsh environments (humidity, flood-prone areas)

  • OEM production with full technical documentation and support

General Winches

Standard electric winches, hydraulic winches, diesel winches, and manual winches for lifting, towing, and other operations in industrial production and cable laying.etc

Mining Winches

Sinking winches,Scraper winches.etc for mining fields.For some special occasions,explosion-proof feature has to be taken into consideration.

Construction Winches

Piling machines—piling winches are used for piling and rigging.Gate hoists:widely used for spillways and dams,also called a sluice winch.

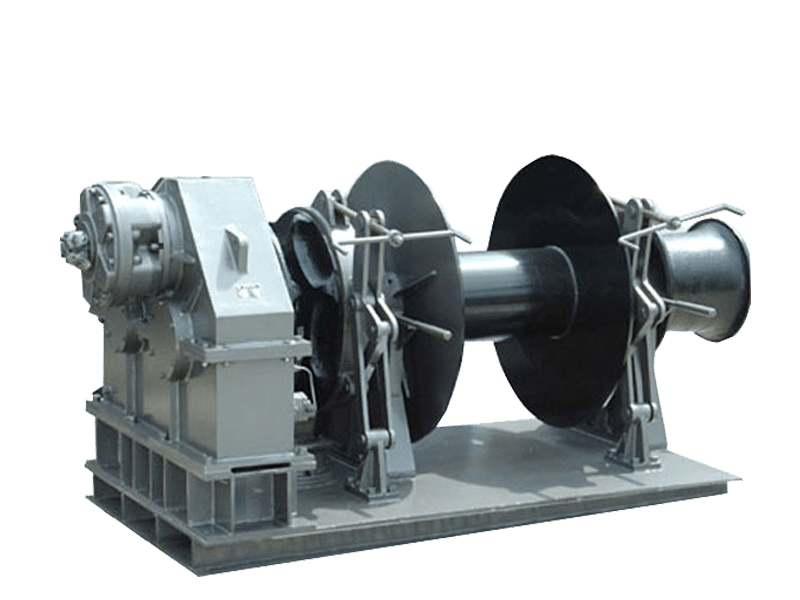

Marine Winches

Anchor winches,mooring winches,windlasses,capstans.etc are used for anchoring and mooring operations for large boats and ships.

Winch Kits

We supply winch related kits such as drum braks,speed reducers,spooling devices,winch motors,wire rops,anchors,chains,airbags.etc

Contact CP Machinery

We’re located in Xinxiang,Henan Province,China,a place known as the hometown of lifting equipment. Email:info@cpmachinery.com.

Winch Hoists Keep Water Under Control

Gate hoist winches are indispensable in water management systems, combining strength, reliability, and control. With decades of experience in industrial winch manufacturing, CPWINCH offers tailor-made equipment designed to meet the demanding needs of hydropower, irrigation, and dam control applications.

Frequently Asked Questions

Q1: How do I choose between a screw hoist and a winch-type hoist?
A1: Screw hoists are simpler but limited in load and speed. Winch-type systems offer higher power, better control, and automation options.

Q2: Can CPWINCH design hoist systems for high-head dams?
A2: Yes. We can design multi-stage winches and tandem lifting structures for large gates at high heads.

Q3: Are your hoists compatible with SCADA or PLC systems?
A3: Absolutely. We offer control panels that integrate with automated systems for central monitoring and remote operation.

📩 Get a Free Quote

Whether you need a compact 1-ton winch or a heavy-duty 200-ton unit, CPWINCH Group is your go-to supplier. We support:

  • OEM Orders

  • Bulk/Wholesale

  • International Shipping

📧 Email: info@cpwinch.com
🌐 Website: www.cpwinch.com

heavy duty gate hoist winch
