Boosting Performance with Pulley Winches in Industrial Lifting

Experience

30+ Years Rich Experience

Digital Solutions

R&D Team standing by

24/7 Support

We are here for you

When dealing with complex lifting or pulling tasks, especially in tight spaces or angled operations, a pulley winch system becomes an essential tool. By incorporating snatch blocks or sheaves, these systems not only allow for redirection of force but also multiply lifting power, making them ideal for construction, marine, and utility operations.

What Is a Pulley Winch System?

A pulley winch typically combines a traditional electric or hydraulic winch with one or more snatch blocks or pulley assemblies. These components are used to:

  • Change the direction of the pulling line

  • Multiply the mechanical force

  • Control loads from safer or more convenient positions

This flexibility makes pulley winches suitable for complex engineering environments.

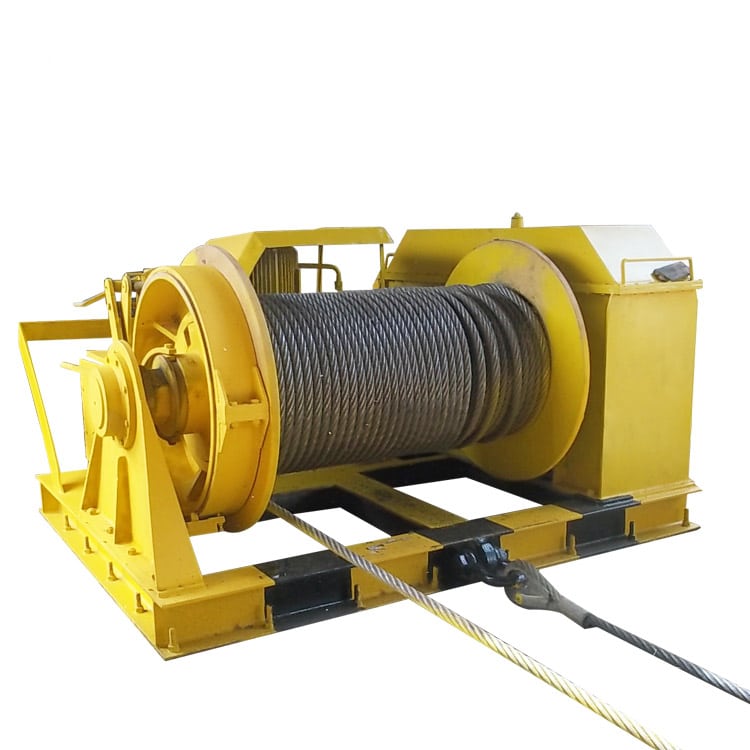

heavy duty winch with pulley

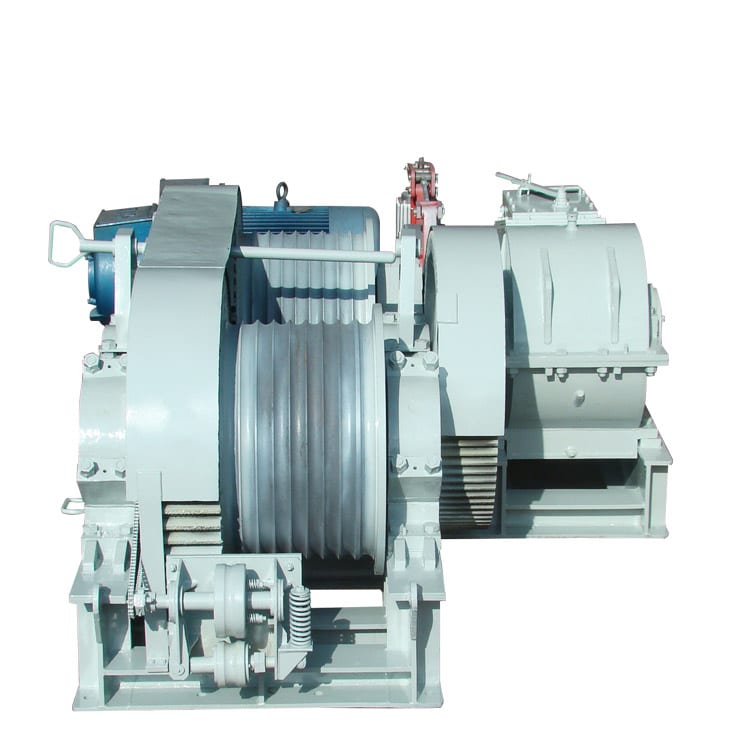

winch for directional lifting

Key Applications of Pulley Winch Systems

1. Construction Sites

  • Redirecting lifting angles when cranes can’t reach directly

  • Lifting materials from underground pits or across rooftops

  • Load sharing on long-span lifts

2. Water Conservancy and Dam Projects

  • Operating gate hoist systems where direct winch placement is not feasible

  • Pulling sluice gates at an angle

  • Ensuring balanced force application using multiple snatch blocks

3. Marine and Shipyard Operations

  • Guiding anchor chains or mooring lines

  • Lifting heavy ship components across irregular decks

  • Redirecting ropes around hulls or confined dock areas

4. Mining and Tunnel Works

  • Slope haulage with redirected pulling

  • Avoiding obstacles by rerouting the winch cable

  • Load control over long tunnel stretches

Benefits of Pulley-Assisted Winch Systems

Benefit Description
Directional Flexibility Pull loads around corners, walls, or over beams
Load Multiplication A 2:1 or 3:1 mechanical advantage reduces winch effort
Improved Safety Keeps operators and equipment away from dangerous zones
Reduced Equipment Strain Distributes tension more evenly across components
Space Optimization Enables winch installation in safer or more convenient positions

 Choosing the Right Pulley and Winch Configuration

When designing a pulley-assisted system, engineers must consider:

  • Winch Power: Sufficient to support the mechanical advantage

  • Pulley Type: Snatch block, fixed sheave, or swivel pulley

  • Rope Compatibility: Wire rope diameter must match sheave groove

  • Load Path: Straight vs. multi-angle redirection

  • Environmental Resistance: For outdoor, marine, or dusty conditions

  • Mounting Options: Portable pulleys or fixed frames

CPWINCH – Customized Winch + Pulley Solutions

At CPWINCH, we provide turnkey winch systems equipped with precision-engineered pulley setups to meet directional or load-multiplying needs. Features include:

  • Heavy-duty snatch blocks and rollers

  • Galvanized or stainless-steel sheaves

  • Rope tension monitoring systems

  • Integrated control with load sensors and limiters

  • Custom-engineered mounting structures

We support installations in construction, marine, water control, and energy projects worldwide.

General Winches

Standard electric winches, hydraulic winches, diesel winches, and manual winches for lifting, towing, and other operations in industrial production and cable laying.etc

Mining Winches

Sinking winches,Scraper winches.etc for mining fields.For some special occasions,explosion-proof feature has to be taken into consideration.

Construction Winches

Piling machines—piling winches are used for piling and rigging.Gate hoists:widely used for spillways and dams,also called a sluice winch.

Marine Winches

Anchor winches,mooring winches,windlasses,capstans.etc are used for anchoring and mooring operations for large boats and ships.

Winch Kits

We supply winch related kits such as drum braks,speed reducers,spooling devices,winch motors,wire rops,anchors,chains,airbags.etc

Contact CP Machinery

We’re located in Xinxiang,Henan Province,China,a place known as the hometown of lifting equipment. Email:info@cpmachinery.com.

Smarter Lifting with Pulley Winch Systems

A pulley winch system unlocks advanced lifting capabilities by increasing mechanical advantage and offering flexible routing options. Whether you’re navigating tight construction zones or hoisting loads from non-standard angles, CPWINCH has the expertise to deliver a reliable, powerful solution tailored to your needs.

Frequently Asked Questions

Q1: How much can a pulley block increase my winch capacity?
A1: With a 2:1 pulley setup, you can double your lifting capacity, though rope length and anchor points must be properly calculated.

Q2: Can pulley winch systems be used in explosive environments?
A2: Yes, with explosion-proof winches and spark-resistant pulleys, we can meet ATEX and MA safety standards.

Q3: Do you offer complete winch + pulley packages?
A3: Absolutely. CPWINCH provides complete systems with matched winches, pulleys, frames, and control units.
