Double Drum Winch – The Power Behind Synchronized Lifting and Pulling
Experience
30+ Years Rich Experience
Digital Solutions
R&D Team standing by
24/7 Support
We are here for you
In industries where coordination, power, and reliability are critical, the double drum winch stands out as an essential piece of equipment. Whether you’re managing a dam gate, launching a ship, or hauling heavy structures up a slope, a twin-drum winch provides the precision and load-sharing capabilities that single-drum systems simply can’t match.
At CPWINCH, we engineer and manufacture double drum winches customized for the most demanding industrial and civil projects.

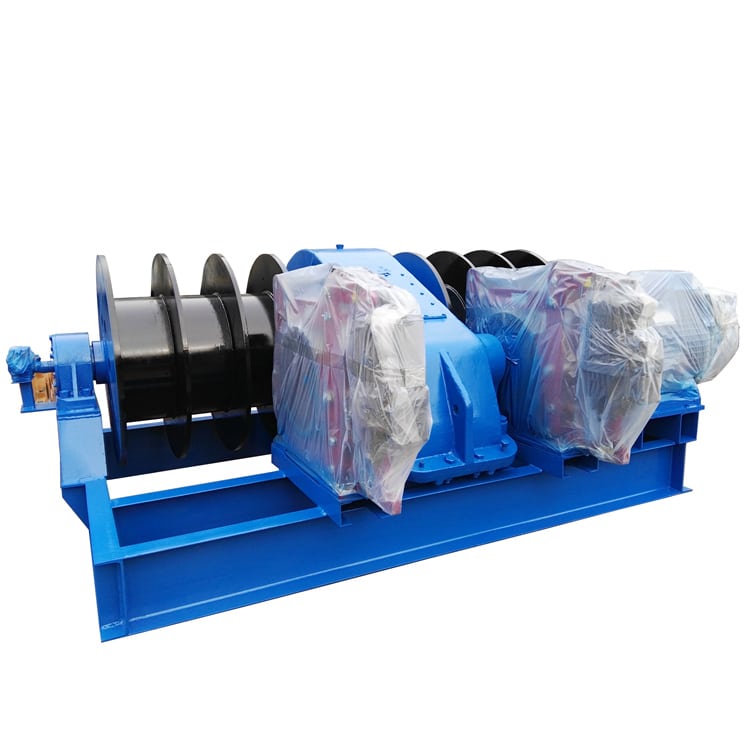

What Is a Double Drum Winch?
A double drum winch consists of two separate rope drums — either independent or synchronized — driven by one or two motors. The configuration allows for:
-
Lifting or pulling two loads simultaneously
-
Controlling both ends of a long or wide structure
-
Ensuring balanced force distribution
Major Applications of Double Drum Winches
1. Dam Gate Lifting
-
Used to lift large radial or segment gates
-
Prevents gate deformation by applying uniform tension at both ends
-
Often seen in hydroelectric and floodgate systems
2. Bridge and Structure Erection
-
Supports the balanced lifting of steel girders or precast segments
-
Used in bridge launching gantries or suspension cable systems
3. Shipyard and Marine Projects
-
Launching or docking of large vessels
-
Handling dual-anchor systems
-
Pulling ship modules into dry docks
4. Mining and Incline Hoisting
-
Towing dual rail-mounted carts in underground slopes
-
Assisting synchronized pulling in narrow shafts
5. Offshore and Oilfield Work
-
Controlling mooring and tensioning operations
-
Operating as part of drilling rig hoisting systems
Key Benefits of Using a Twin Drum Winch
| Feature | Benefit |
|---|---|
| Synchronized Operation | Equal force on both sides of a load, reducing structural stress |
| Dual Control | Independent or combined drum control for flexibility |
| Increased Safety | Prevents tilting or overloading on one side |
| Higher Load Capacity | Ideal for large-scale infrastructure and marine jobs |
Design Options Available at CPWINCH
We offer multiple configuration options based on customer needs:
-
Electric or hydraulic drive
-
Single motor or dual motor drive system
-
Grooved or plain drums
-
Manual, push-button, or wireless control
-
Fixed or mobile base structures
✅ All systems are engineered for long-duty cycles, harsh environments, and custom integration with civil works or control rooms.
Choosing the Right Double Drum Winch
Before choosing a winch system, consider:
-
Total pulling/lifting load
-
Distance and rope length needed
-
Required synchronization precision
-
Installation space and layout constraints
-
Operating environment: dust, water, salt, or heat exposure
-
Control preference: Manual, wired, wireless, or PLC
Build Bigger, Lift Smarter
Double drum winches are a go-to solution for industrial and infrastructure projects where synchronized lifting and control are vital. From water control systems to shipyards, CPWINCH’s twin-drum winches deliver strength, safety, and custom engineering tailored to your needs.
Frequently Asked Questions
Q1: Can CPWINCH design custom drum sizes for our lifting height needs?
A1: Yes. We fully customize drum diameter, length, and groove layout based on your rope specifications and lifting distance.
Q2: Can the two drums be controlled independently?
A2: Yes. You can choose between synchronized control or dual independent drives, depending on the application.
Q3: Is it possible to integrate PLC control into a double drum winch system?
A3: Absolutely. Our winches support PLC, HMI panels, and remote wireless systems for high-level automation.
